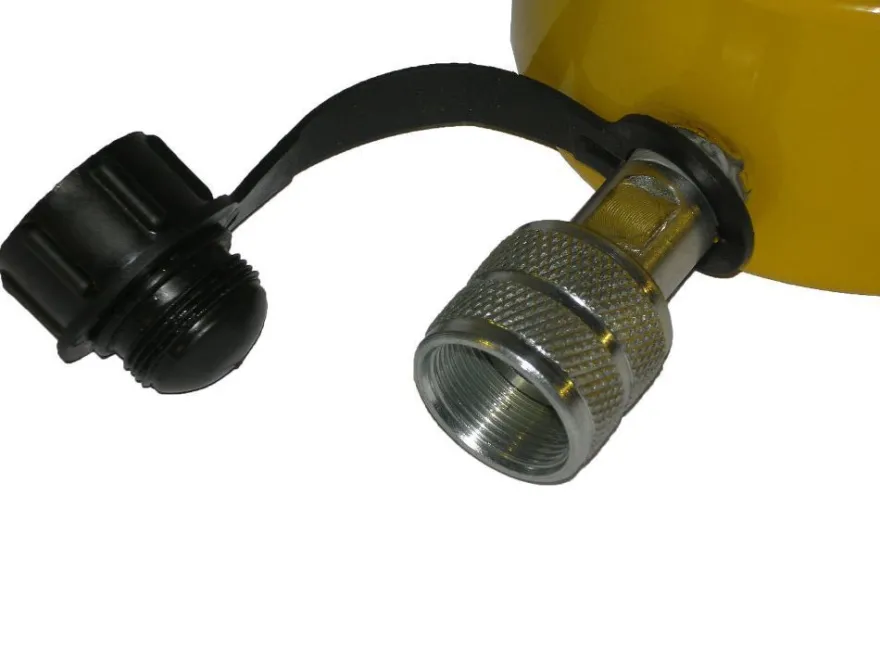

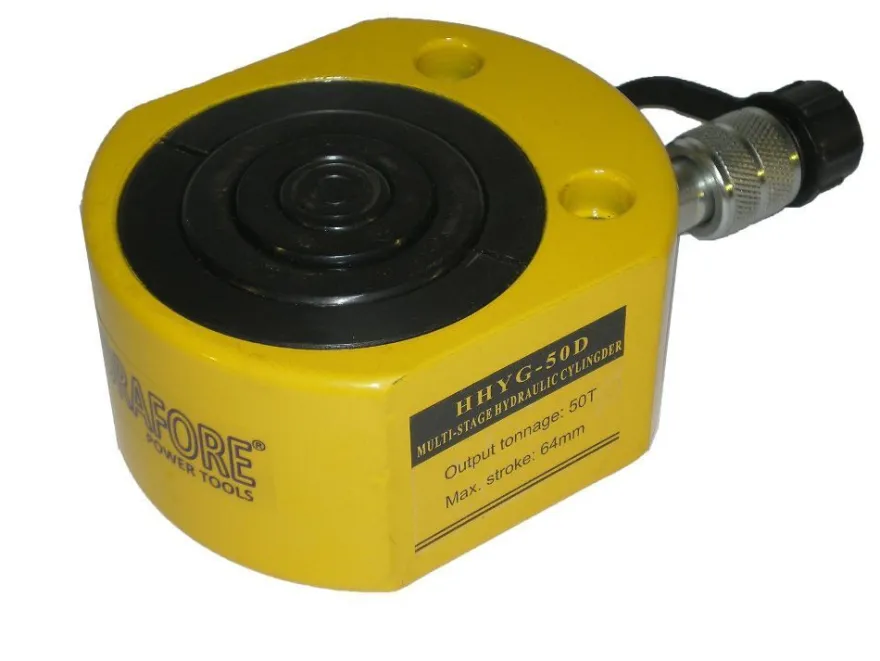

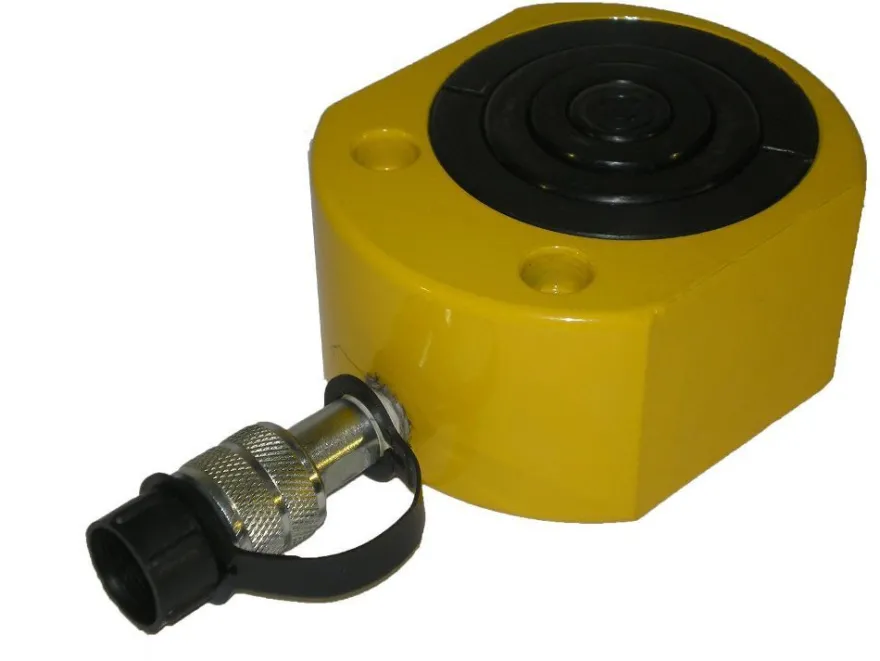

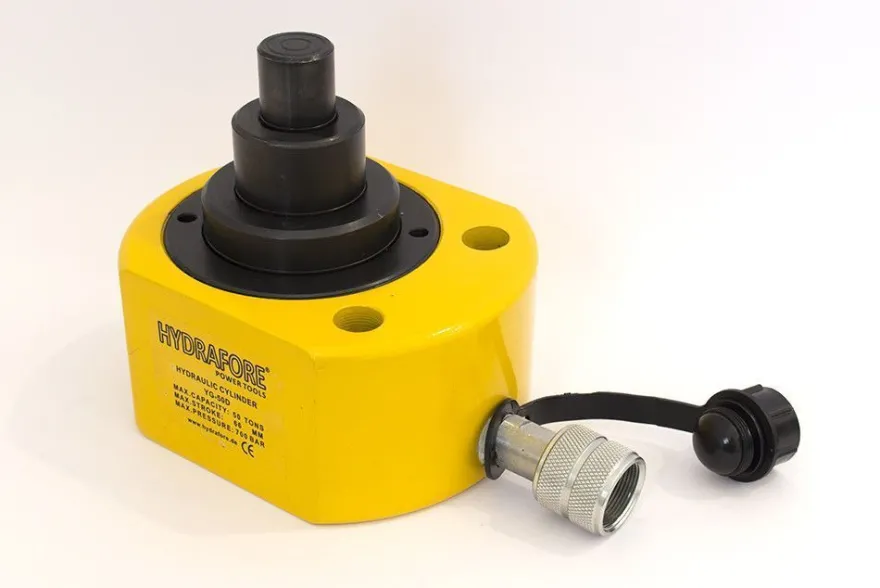

50 ton 66mm Hydraulik Zylinder Kurzhubzylinder Hydraulikzylinder 50t hub 66 mm

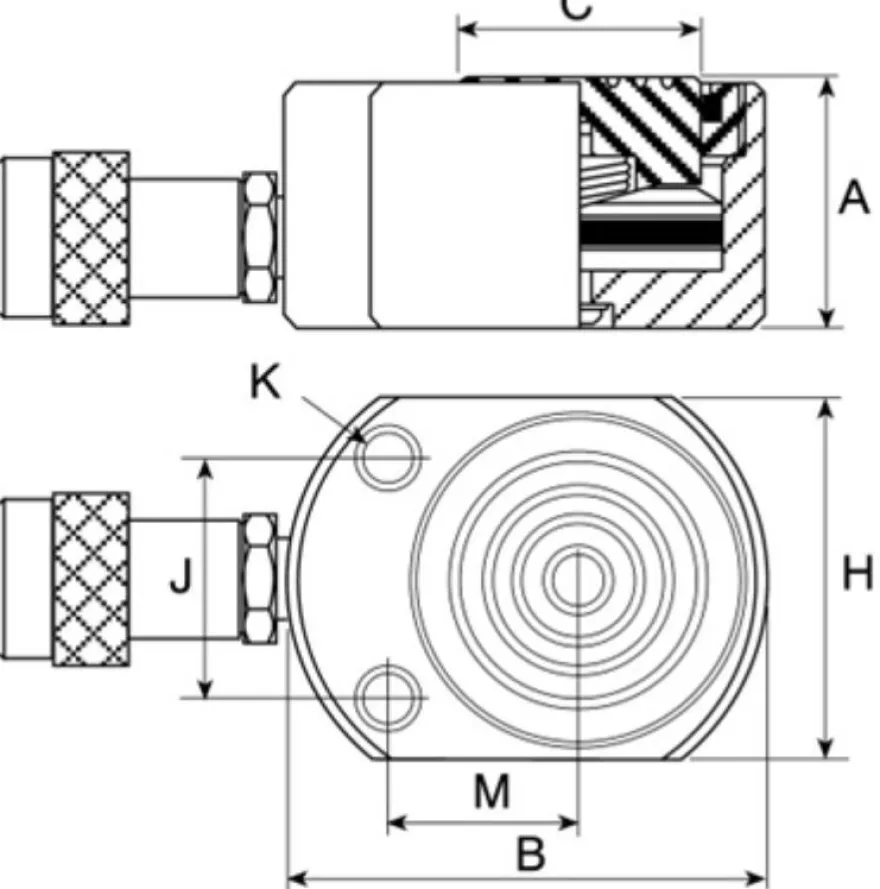

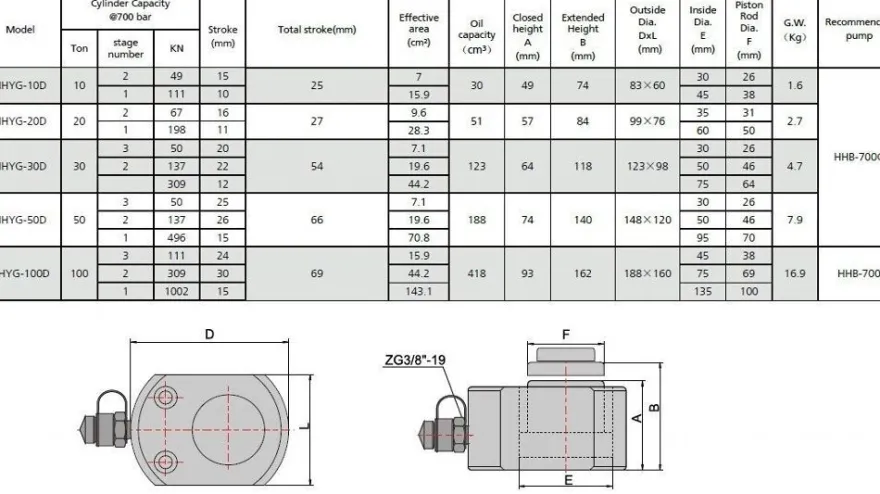

YG-10D:

A = 47,8 mm

B = 83 mm

C1 = 37,9 mm

C2 = 25,9 mm

J = 35,4 mm

H = 60 mm

K = 7 mm

M = 35 mm

YG-20D:

A = 55,5 mm

B = 98,8 mm

C1 = 49,9 mm

C2 = 30,8 mm

J = 49 mm

H = 76,4 mm

K = 9,3 mm

M = 38,5 mm

YG-30D:

A = 61,7 mm

B = 123,5 mm

C1 = 63,9 mm

C2 = 45,9 mm

C3 = 25,9 mm

J = 53 mm

H = 98,3 mm

K = 10 mm

M = 46,5 mm

YG-50D:

A = 72 mm

B = 148,1 mm

C1 = 70 mm

C2 = 45.9 mm

C3 = 25,9 mm

J = 74 mm

H = 120 mm

K = 10,8 mm

M = 59 mm

YG-100D:

A = 87 mm

B = 180 mm

C1 = 92 mm

C2 = 70 mm

C3 = 38 mm

J = 88 mm

H = 158 mm

K = 13 mm

M = 72 mm
